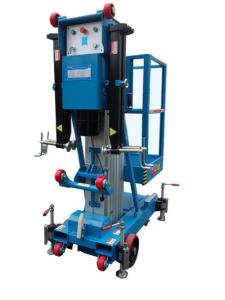

Easy Loading Trailer Mounted Aerial Lifts 9.6 Meter Working Height For One Person

Name: Easy Loading Trailer Mounted Aerial Lifts 96 Meter Working Height For One Person
Brand: SIVGE
Price: 1 USD

Brand Name : SIVGE

Model Number : GTWR8-1008G

Certification : CE / ISO9001 / ISO14001

Place of Origin : China

MOQ : 1 Set

Price : negotiable

Payment Terms : T/T, D/P, L/C

Supply Ability : 100 units per month

Delivery Time : within 35 working days

Packaging Details : plywood case for LCL;steel pallets for FCL (10Pcs/20GP)

platform lift : mobile aerial platform

Max.working height : 9.6m

Rated load : 136kg for 1 person

Size of platform : 650*630mm

Stowed dimension : 1330*770*1970mm

Move method : loading by truck or manual push around

Contact Now

Easy loading trailer mounted aerial lift with 9.6 meter working height for one person

CE certificated
Suitable for one person work on
Best quality and performance
Good reliable after-sales service

Specifications of

Easy loading truck-mounted aerial lift with 8 meter working height for one person

Series	G1008
Model-code	GTWR8-1008G
Platform height(m)	7.6
Working height (m)	9.6
Capacity(kg)/occupants	136/1
Platform size(mm)	650*630
Outrigger footprint(mm)	2410*2000
Stowed length(mm)	1330
Stowed width(mm)	730
Stowed height(mm)	1970
Machine weight(kg) (for reference)	470
Power supply	AC220V
Power input(kw)	0.75
Moving methods	Manual push type
Front wheel	5inch
Rear wheel	10inch
Available truck deck height	500-700mm
Max. allowed wind speed	12.5m/s
Rated oil pressure	12Mpa
Optional:
Battery as power source	DC12V/ 0.7Kw
Battery	12V/120Ah
Integrated charger	Output 12V/15A AC220V/AC110V input

STANDRAD FEATURES

Dual controls operation
Compact size with easy quick outrigger assemblage
Easy loading device for long distance transportation by one or two persons
Emergency lowering device in case of power supply failure
Emergency stop buttons at both controls
Low maintenance requirements will save you time and money.
Maintenance-free battery with intelligent charger for DC model
Conform to EN 280:2013

Packing & Shipping

LCL: plywood case with steel pallet at bottom
FCL: steel pallet with anti-rust covers, 10PCS/20GP, 21PC/40GP
Delivery time is usually 30 days according to order qty. and models.

After-sale Service

To provide a lifetime goods services for all Sivge equipments, included equipment maintenance, spare parts supply, provide manuals and video,etc.
To provide remote service support by phone and network freely.

Sivge quality

SIVGE adheres to providing high quality products and globally sourcing suitable and reliable key components such as hydraulic parts and electrical parts to ensure the product quality.

SIVGE regards product safety as basic point of connecting to users.
1) SIVGE firmly adheres to domestic and international standards in the process of designing, manufacturing and transporting; the strength of the parts and the stability of the whole machine must undergone strict calculation and experimental verification.
2) All products are tested by the national authoritative testing institutions.
3) The production process, inspection and parts purchasing are fully in accordance with quality assurance system.

Working site

Easy Loading Trailer Mounted Aerial Lifts 9.6 Meter Working Height For One Person

Carry by passaenge lift because of its compact size.
